CNC EDM SERIES
w/SURE FIRST controller: SI series
Max. program storage 500 blocks/file, 600 files
Max. program setting 500 blocks,10 items/block
On time 21 pos.
Off time 16 pos.
Current setting 19 pos.
Bipulse current 3 pos.
Auto working time (Jump) 0.1 sec.-9.9 sec.
Auto jumping distance(Jump) 0.1mm-9.9 mm
Min . unit for D.R.O. 0.001mm
Max. distance for D.R.O. 9999.999mm
Edit functions posi. cut, orbit misc,
sub program
Displaying axes on D.R.O. X,Y,Z axes
Program memory available while breaking off power 6 months

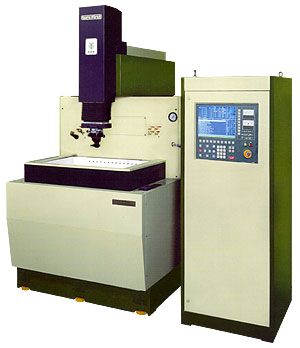

CNC-462

CNC-462 model is with rise & fall tank for handy loading & unloading.
Handy operation, either conversation or G language is available.
Capable of random path movement and random shape orbit cutting.
With the functions of graphics simulation machining.
Auto electrode changing and C axis machining functions could be added as options.
Extra large memory, total of 32 NC program.


CNC EDM SERIES
w/SURE FIRST controller: SI series		 NC FUNCTION
SI CONTROLLER
Max. program storage 500 blocks/file, 600 files
Max. program setting 500 blocks,10 items/block
On time 21 pos.
Off time 16 pos.
Current setting 19 pos.
Bipulse current 3 pos.
Auto working time (Jump) 0.1 sec.-9.9 sec.
Auto jumping distance(Jump) 0.1mm-9.9 mm
Min . unit for D.R.O. 0.001mm
Max. distance for D.R.O. 9999.999mm
Edit functions posi. cut, orbit misc,
sub program
Displaying axes on D.R.O. X,Y,Z axes
Program memory available while breaking off power 6 months
Equipped with SURE FIRST SI controller.
3D Simultaneously machining
Auto jump flushing.
Tool path graphics displaying during machining.
Automatic edge finding and center point searching.
Electrode wear automatic editing.
Orbit cut, side machining, auto-enlarging.etc.
Electrode automatic exchange device is available as option.
