| MODEL |

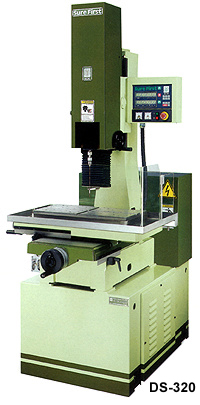

DS-320 |
DS-430 |
|
Work table size
(WxD) |
mm(in) |
600x300
(23 5/8x11 13/16) |
700x400
(27 9/16x15 3/4) |
| Max.workpiece
size (WxDxH) |
mm(in) |
600x300x240
(23 5/8x11 13/16 x9 7/16) |
700x400x350
(27 9/16x15 3/4 x13 3/4) |
| Table
travel
(X,Y axes) |
mm(in) |
300x200(11
13/16 x 7 7/8) |
400x300(75
3/4 x 11 13/16) |
| Work-head
travel (Z2
axis)
|
mm(in) |
200(7
7/8) |
200(7
7/8) |
|
Ram servo travel (Z1
axis)
|
mm(in) |
350(13
3/4) |
350(13
3/4) |
| Capacity
of dielectric
|
 (gal) |
20(5) |
20(5) |
| Machine
dimensions(WxDxH) |
mm(in) |
1100x1300x2100
(43 5/16x51 3/16 x82 3/4) |
1200x1300x2100
(47 1/4x51 3/16 x82 5/8) |
| Machine
weight |
kgs(lbs) |
1100(2420) |
1400(3080) |
| Max.
process current |
A |
25(50) |
25(50) |
| Max.
power consumption |
KVA |
4(6) |
4(6) |
