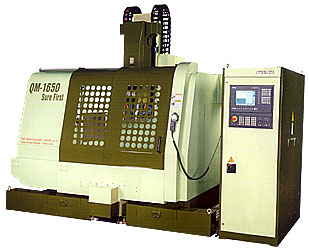

QM-432/1650/1286

MACHINE SPECIFICATION

MODEL UNIT QM-432 QM-1650 QM-1286
X axis travel mm (in) 400(15 3/4) 400(15 3/4) 1000(39 3/8) 1200(47 1/4)
Y axis travel mm (in) 500(19 11/16) 350(13 3/4) 600(23 3/4) 800(31 1/2)
Z axis travel mm (in) 250(9 13/16) 250(9 13/16) 500(19 11/16) 600(23 5/8)
Distance between working table &
spindle nose		 mm (in) 160~410
(6 3/8~16)		 250~750
(9 13/16~29 1/2)		 150~850
(5 7/8~33 7/16)
Work  area (LXW) mm (in) 600x450
(23 5/8x17 3/4)		 800x450
(31 1/2x17 3/4) 		1200x750
(47 1/4x29 1/2)
T Slot W1xH1xW2xH2 mm (in) 30x10x18x11 30x10x18x11 30x10x18x18
Taper of spindle nose   ISO 30 HSK-A63 BT-40 HSK-A63 BT-40
Spindle speeds r.p.m. 30000 24000 8000 24000 8000
Spindle motor KW 3 15 12 15 12
Cutting feed rate mm/min 1~10000 1~10000 1~10000
No. of tools (ATC) PCS 0 5 16 option
Power consumption KVA 13 45 45
Air source   7kg/cm2/300l/min 7kg/cm2/500l/min 7kg/cm2/500l/min
Machine dimension (WxDxH) mm (in)
2700x2300x2500
(106 5/16x90 1/2x92 3/8)
 4000x3000x3000
(157x118 1/8x118 1/8)		 4000x3500x3200
(157x135 5/16 x126)
Machine weight kgs 3000 8000 9000
W/SIMENS controller   810D/840D 810D/840D 810D/840D



STANDARD ACCESSORIES

  • Tool box & Tool
  • Working table & T nut
  • System of cutting fluid
  • Automatic power off system
  • End lamp
  • Work lamp
  • Full cover
  • Spindle cooling system
  • Air dryer installation

SAMPLE
OPTIONAL ACCESSORIES
  • HSK-A63 Tool holder
  • ISO-30 Tool holder
  • Air cooling Nozzle
  • Automatic tool changer
  • Net work transmission system
  • Tool probe
  • Water chip clearer

SIMEN CONTROLLER
