ZPNC-540

Machine specification

ITEM UNIT ZPNC-540
Word tank volume (WxDxH) mm(in) 1300x750x520 (51 3/16x29 1/2x20 1/2)
Max. workpiece weight kgs(lbs) 1800(3960)
Work table area (Lxw) mm(in) 850x450 (33 7/16x17 11/16)
Travel (X,Y axes) mm(in) 500x400 (19 11/16x15 3/4)
Quill stroke (Z axis) mm(in) 200(7 7/8)
Type of servo motor mm(in) DC SERVO MOTOR
Machine head stroke (W Axis) mm(in) 200(7 7/8)
Max. electrode load kgs(lbs) 125(275)
Distance beteen working table & electrode holder plate mm(in) 245-645 (9 5/8-25 3/8)
Size of electrode holder plate mm(in) 230x125 ( 9x4 15/16)
Machine weight kgs(lbs) 2500(5500)
Machine dimensions(WxDxH) mm(in) 1700x1850x2750 (66 15/16x72 13/16x108 1/4)
Max. workpiece dimensions (WxDxH) mm(in) 850x450x470 (33 7/16x17 11/16x18 1/2)

ACCURACY AND POWER SUPPLIES

Max. working speed +Cu: St g/min 6.2
Max. working speed +Gr: St g/min 7.01
Best surface roughness µ.m RA0.3-0.5 RMS14-21
Min. electrode wear rate %less 0.2
Max. process current A 50 (75, 100, 125)
Max. power consumption KVA 6 (9, 12, 15)
Power supply dimensions mm (in) 920x660x1900 (36 1/4X26X74 13/16)

DIELECTRIC FLUID TANK

Tank dimensions (WxDxH) mm (in) 1000x1950x580 (393/8X763/4X2213/16)
Pump flow e/min Large:240
Small:100
Pump motor kw Large:0.75
Small:0.375
Tank weight kgs (lbs) 220(484)
Volume of dielectric fluid e (gal) 900(238)

NC FUNCTION

Max. program storage 1000 files
Max. program setting 15 steps
On time 22 pos.
Off time 20 pos.
Current setting 30A:16 pos./50A:18 pos./75A:19 pos
Bipulse current 4 pos.
Auto working time (Jump) 0.1 sec.  - 9.9 sec.
Auto jumping distance (Jump) 0.1 mm - 9.9 mm
Min. unit for D.R.O. 0.005 mm
Max. distance for D.R.O. 900 mm
Edit functions Input, Save, Delete, Memory, Clear
D. R. O display X, Y, Z axes
Back up memory file

6 months

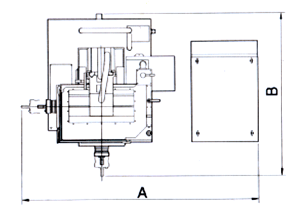

FLOOR SPACE

MODEL UNIT  A B
ZPNC-203 mm (in) 1460(577/16) 1485(587/16)
ZPNC-251 mm (in) 2130(8313/16) 1485(587/16)
ZPNC-408 mm (in) 2420(951/4) 1410(551/2)
ZPNC-540 mm (in) 3475(1363/4) 2751(1081/4)
