ZPNC-408

Machine specification

ITEM UNIT ZPNC-408
Word tank volume (WxDxH) mm(in) 1000x600x415(39 3/8x23 5/8x16 5/16)
Max. workpiece weight kgs(lbs) 500(1100)
Work table area (Lxw) mm(in) 700x400(27 9/16x15 3/4)
Travel (X,Y axes) mm(in) 400x300 (15 3/4x11 13/16)
Quill stroke (Z axis) mm(in) 200(7 7/8)
Type of servo motor mm(in) DC SERVO MOTOR
Machine head stroke (W Axis) mm(in) 200(7 7/8)
Max. electrode load kgs(lbs) 60(132)
Distance beteen working table & electrode holder plate mm(in) 250-650 (9 13/16-25 9/16)
Size of electrode holder plate mm(in) 180x135 ( 7 1/16x5 5/16)
Machine weight kgs(lbs) 1500(3300)
Machine dimensions(WxDxH) mm(in) 1520x1470x2060 (59 13/16x57 7/8x81 1/8)
Max. workpiece dimensions (WxDxH) mm(in) 700x400x350 (27 9/16x15 3/4x13 3/4)

ACCURACY AND POWER SUPPLIES

Max. working speed +Cu: St g/min 3.06
Max. working speed +Gr: St g/min 3.52
Best surface roughness µ.m RA0.3-0.5 RMS14-21
Min. electrode wear rate %less 0.2
Max. process current A 50 (30, 75)
Max. power consumption KVA 6 (4, 9)
Power supply dimensions mm (in) 920x660x1900 (36 1/4X26X74 13/16)

DIELECTRIC FLUID TANK

Tank dimensions (WxDxH) mm (in) 1470x1150x490 (577/8X451/4X195/16)
Pump flow e/min 100
Pump motor kw 0.375
Tank weight kgs (lbs) 350(770)
Volume of dielectric fluid e (gal) 600(159)

NC FUNCTION

Max. program storage 1000 files
Max. program setting 15 steps
On time 22 pos.
Off time 20 pos.
Current setting 30A:16 pos./50A:18 pos./75A:19 pos
Bipulse current 4 pos.
Auto working time (Jump) 0.1 sec.  - 9.9 sec.
Auto jumping distance (Jump) 0.1 mm - 9.9 mm
Min. unit for D.R.O. 0.005 mm
Max. distance for D.R.O. 900 mm
Edit functions Input, Save, Delete, Memory, Clear
D. R. O display X, Y, Z axes
Back up memory file

6 months

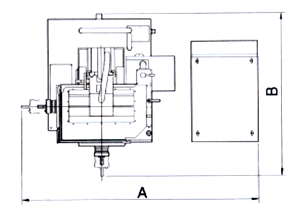

FLOOR SPACE

MODEL UNIT  A B
ZPNC-203 mm (in) 1460(577/16) 1485(587/16)
ZPNC-251 mm (in) 2130(8313/16) 1485(587/16)
ZPNC-408 mm (in) 2420(951/4) 1410(551/2)
ZPNC-540 mm (in) 3475(1363/4) 2751(1081/4)

Travel (X, Y, Z Axes) mm (in) 400x300x200 (153/4X1113/16X77/8)
Work table area (L x W) mm (in) 700x400 (279/16X153/4)
Work tank volume (WxDxH) mm (in) 1000x600x415 (393/8X235/8X165/16)
Max.  work piece weight kgs (lbs) 500 (1100)
Max. electrode load kgs lbs) 60 (132)
Distance between working table and electrode holder plate mm (in) 250-650  (913/16-259/16)
Machine dimensions (WxDxH) mm (in) 1520X1470X2060 (5913/16X577/8X811/8)
Machine weight kgs (lbs) 1500 (3300)

Max. program storage 1000 files
Max. program setting 15 steps
On time 22 pos.
Off time 20 pos.
Current setting 30A:16 pos./50A:18 pos./75A:19 pos
Bipulse current 4 pos.
Auto working time (Jump) 0.1 sec.  - 9.9 sec.
Auto jumping distance (Jump) 0.1 mm - 9.9 mm
Min. unit for D.R.O. 0.005 mm
Max. distance for D.R.O. 900 mm
Edit functions Input, Save, Delete, Memory, Clear
Display axis in D.R.O. X, Y, Z axes
Back up memory file

6 months
