DM-408

Travel (X, Y, Z Axes) mm (in) 400x300x200 (153/4X1113/16X77/8)
Work table area (L x W) mm (in) 700x400 (279/16X13/4)
Work tank volume (WxDxH) mm (in) 1000x600x415 (393/8X235/8X165/16)
Max.  work piece weight kgs (lbs) 500 (1100)
Max. electrode load kgs lbs) 60 (132)
Distance between working table and electrode holder plate mm (in) 250-650  (913/16-259/16)
Machine installation dimension
(including generator) (WxDxH)		 mm (in) 1520X1470X2060 (5913/16X577/8X811/8)
Machine weight mm (lbs) 1500 (3300)

MODEL\DIMENSIONS DM-408
A: mm(in)
B: mm(in) 1470(577/8)
C: mm(in)
D: mm(in)
E: mm(in) 2420(951/4)
F: mm(in)
G: mm(in) 900(357/16)
H: mm(in) 2360(9215/16)
I: mm(in) 1150(451/4)
J: mm(in) 1365(533/4)
K: mm(in) 2000(783/4)
M: mm(in) 18(11/16)
N: mm(in) 400(153/4)
O: mm(in) 450(173/4)
P: mm(in) 450(173/4)
Q: mm(in) 720(283/8)

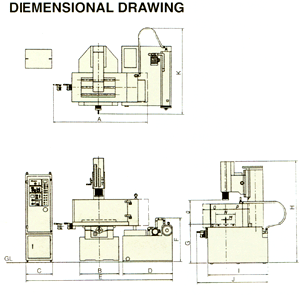

DIMENSIONAL DRAWING

NO.

ITEM

 UNIT DM-408
1 Work tank volume (WxDxH) mm (in) 1000x600x415 (393/8X235/8X165/16)
2 Max.  workpiece weight kgs (lbs) 500(1100)
3 Work table area (L x W) mm (in) 700X400 (279/16X153/4)
4 Travel (X, Y, Axes) mm (in) 400X300 (113/4X1113/16)
5 Quill stroke mm (in) 200(77/8)
6 Type of servo motor   DC SERVO MOTOR
7 Machine head stroke mm (in) 200(77/8)
8 Max. electrode load kgs (lbs) 60(132)
9 Distance between working table and electrode holder plate mm (in) 250-650 (913/16-259/16)
10 Size of electrode holder plate mm (in) 180X135 (71/16X55/16)
11 Machine weight kgs (lbs) 1500(3300)
12 Machine installation dimension
(including generator) (WxDxH)		 mm (in) 1520x1470x2060 (5913/16X577/8X811/8)
13 Max. work piece dimensions (WxDxH) mm (in) 700x400x350 (279/16X153/4X133/4)

ACCURACY AND POWERSUPPLIES

1 Max. working speed +Cu: St g/min 3.06
2 Max. working speed +Gr: St g/min 3.52
3 Best surface roughness µm RA0.3-0.5 RMS14-21*RA0.2-0.3 RMS8-14
4 Min. electrode wear rate % less 0.2
5 Max. process current A 50 (30, 75)
6 Max. power consumption KVA 6 (4, 9)
7 Power supply dimensions mm (in) 600x480x1220 (235/8X187/8X48)

DIELECTRIC FLUID TANK

1 Tank dimensions (WxDxH) mm (in) 1470x1150x490 (577/8X451/4X195/16)
2 Pump flow e/min 100
3 Pump motor kw 0.375
4 Tank weight kgs (lbs) 350 (770)
5 Volume of dielectric fluid e (gal) 600 (159)
